AG-4-CO-M5042-01 Pre-calibrated module for CO
AG-4-CO-M5042-01
FIGARO
Product Description：
1. Product Introduction
The AG-4-CO-M5042 is an embedded type module equipped with the carbon monoxide gas sensor TGS5042, for accurately detecting carbon monoxide (CO) gas concentrations in various environments. The module has been pre-calibrated before leaving the factory and has good stability and selectivity. It includes a built-in temperature sensor for data correction via software algorithms, minimizing environmental impact on measurement accuracy. It uses digital communication (UART bus output) for gas concentration, which allows users to easily and quickly integrate the module into various systems, making it suitable for both indoor and outdoor air quality detection, as well as industrial gas detection.

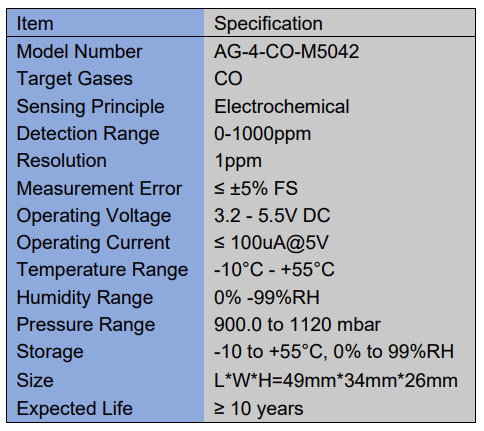

2. Technical Specification
3. Application
* Residential and commercial CO detectors
* Ventilation control
* CO monitor for gas boilers, kerosene heaters, etc.
