Pre-calibrated Module for Methane
AG-2-CH4-MA2611(D）
FIGARO
Product Description：
1. Product Description
The AG-2-CH4-MA2611(D) is an embedded type module euipped with Figaro's semicondcutor Sensor TGS2611-E00, the module has been pre-calibrated before leaving the factory and it includes a specialized filter that reduces interference from gases like alcohol, ensuring a selective response to methane (CH4). It utilizes digital communication through a USART and a programmable Alarm output interface for gas concentration readings. This allows users to easily and quickly integrate the module into residential gas leakage alarm systems, such as household natural gas detectors.

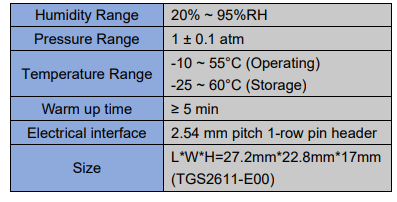

2. Technical Specifications
3. Features
(1) High selectivity to mathane
(2) Long life and low cost
(3) Programmable Alarm output
(4) USART digital output
(5) Pre-calibrated before leaving the factory
